FT232RL Magnetically isolated USB to TTL serial port (ie UART, COM port)

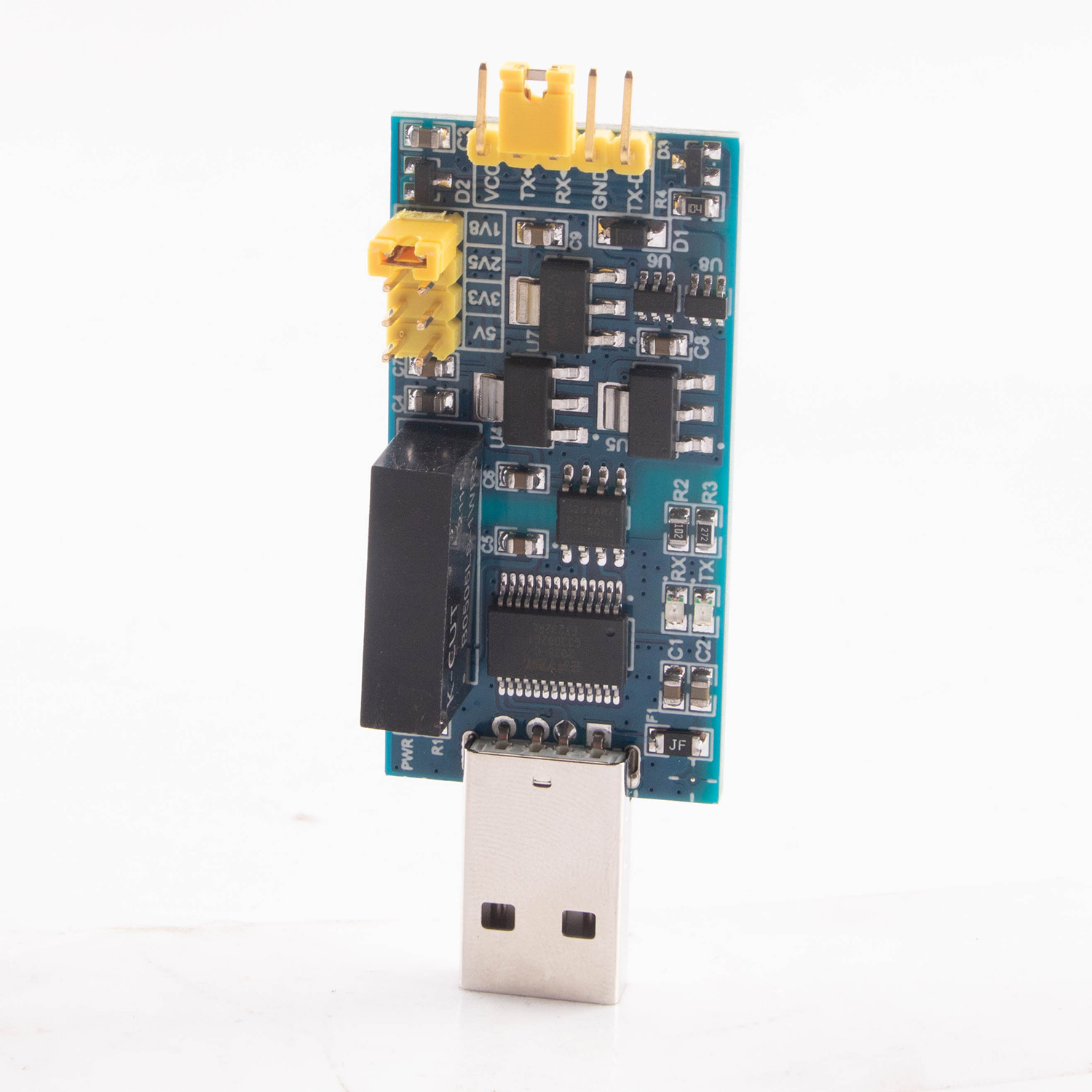

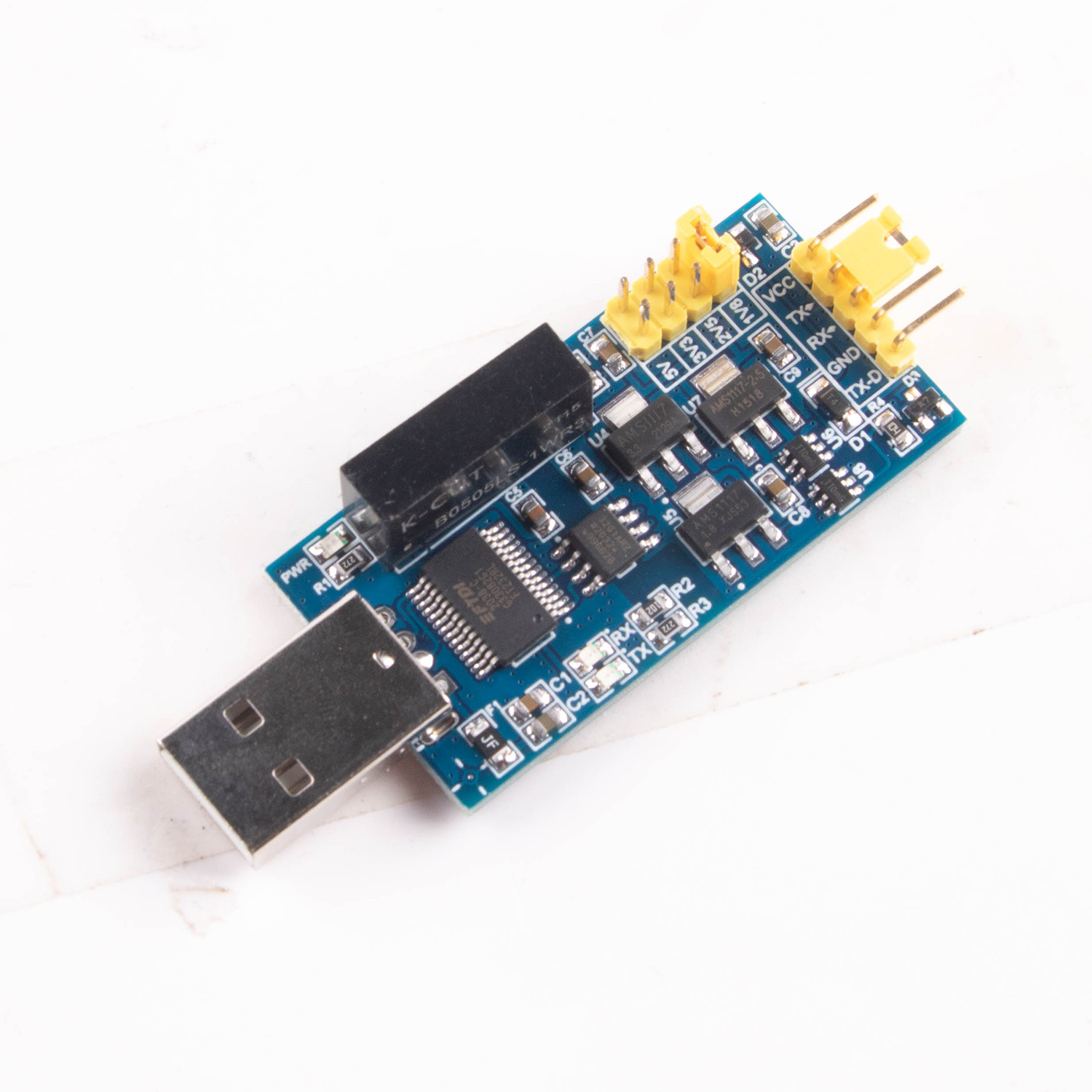

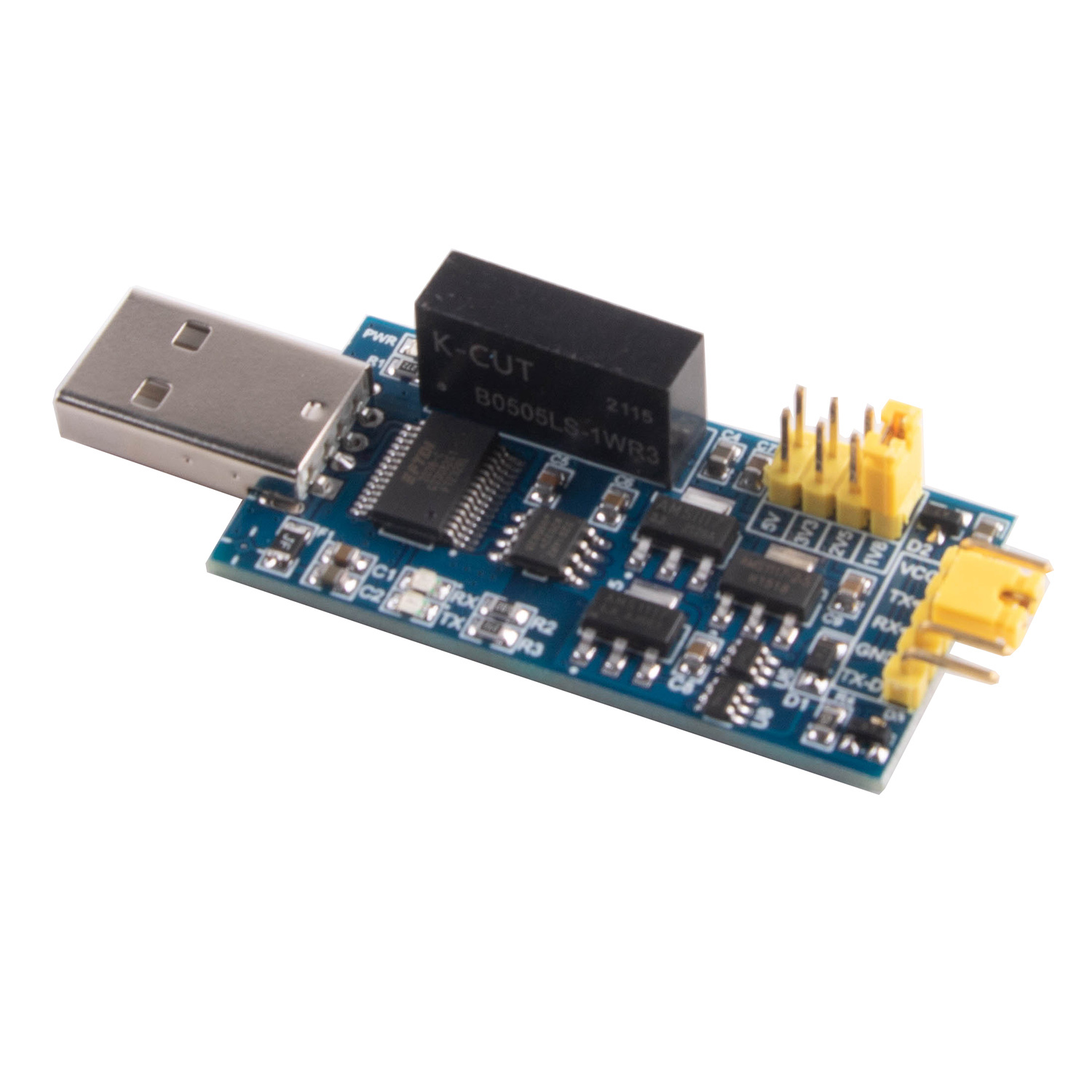

MCS-88 is a magnetically isolated USB to TTL serial interface (ie UART/COM port), the main control uses FTDI USB chip FT232RL, originally designed by DBS Technology, with 1000V DC isolation voltage and reliable communication speed up to 3Mbps, USB The side and TTL side are completely isolated, which fully guarantees the safety of the computer and effectively reduces interference.
Insist on using original chips, brand new materials, 100% inspection and shipment
●5V/3.3V (dual level): The power supply voltage and signal level can be switched to 5V/3.3V, and the power supply voltage and signal are different. Send DuPont line.
●5V/3.3V/2.5V/1.8V (four-level): The power supply voltage and signal level can be switched to 5V/3.3V/2.5V/1.8V, and the power supply voltage and signal are different. Send DuPont line.
main feature
●FT232RL main control, the industry's excellent USB-to-serial chip, a stable choice for industrial applications.
●The latest generation of ADI magnetic isolation chip ADU3201 has fast speed, high waveform, and power consumption is significantly lower than that of photoelectric isolation.
● On-board large-spacing isolated power supply, no need for external power supply, just plug in the USB interface to use.
● Increase the isolation gap and slot the PCB to better avoid creepage and improve safety performance.
● Integrated protection diode to improve protection ability.
● USB-A male connector, no need to connect cable, directly plug into the computer USB port to use.
● The communication level can be conveniently switched to 5V or 3.3V through the jumper cap (four-level models support 2.5V/1.8V).
● VCC can output voltage 5V or 3.3V (four-level model supports 2.5V/1.8V). , The communication level and VCC can be the same or different.
● TX leads to TX-D (open-drain output) through the reverse diode, which is convenient for programming STC single-chip microcomputer, and avoids incomplete programming failure after power failure.
● On-board power supply, sending and receiving three LED indicators, and observe the communication status at any time (dedicated IO driver, not connected in parallel to the signal line, does not affect communication).
typical application
● Isolation USB to TTL serial communication and debugging equipment under high-voltage dangerous situations.
● Upgrade the peripheral firmware such as routers and set-top boxes.
● Burn (download) MCU program
● High-speed USB UART communication (up to 2Mbps)
● Built into the product to improve communication reliability
Accessories Picture

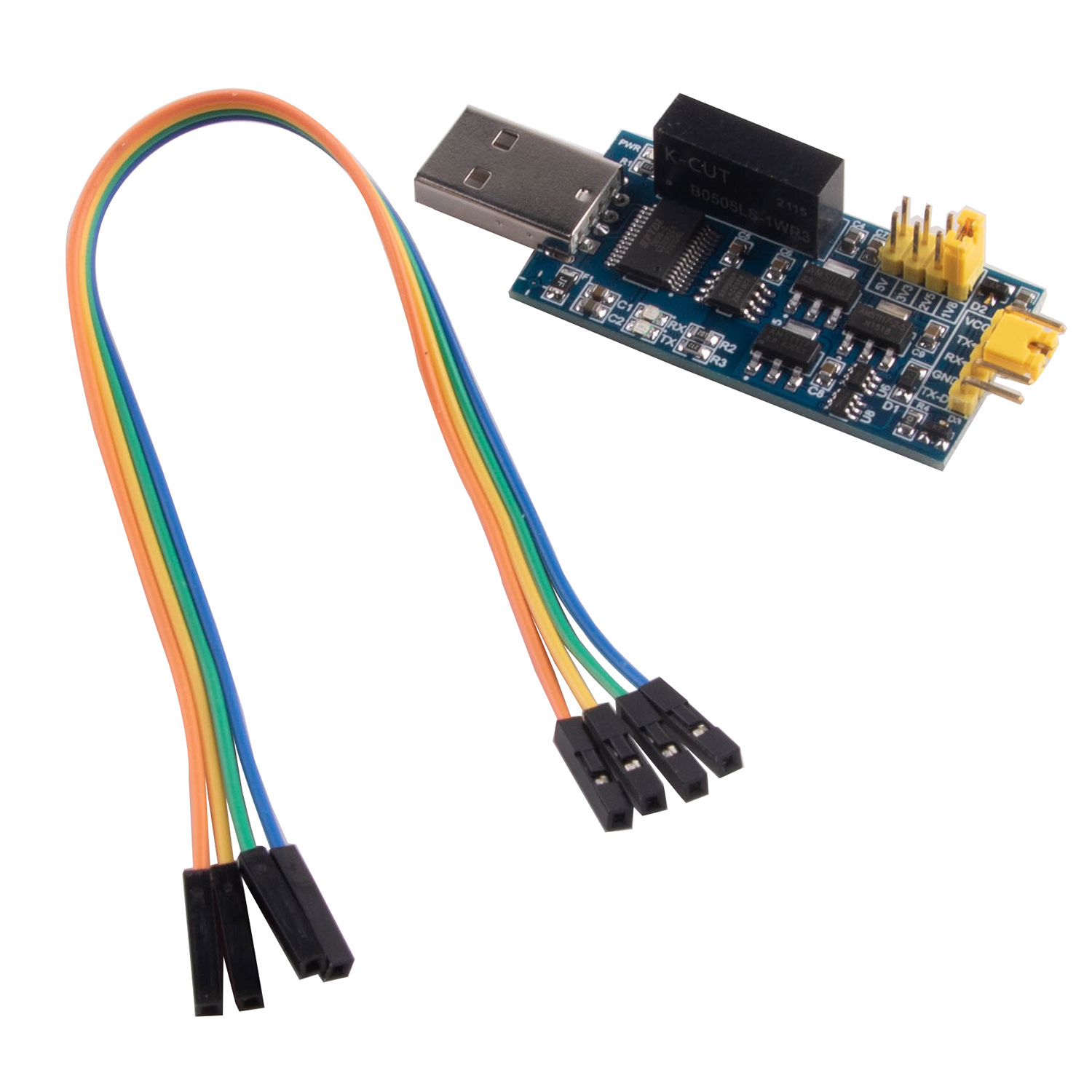

The DuPont cable is a gift, and the USB extension cable can be purchased according to your needs.
Pin function
●Level selection pin: used to select the signal and power VCC pin level, it must be connected to one of 5V or 3.3V.
●TX/RX: serial data pin (refers to the module's own TX. data transmission/RX. data reception, corresponding to the RX/TX of the external device.)
●GND: power ground (GND must be connected and must not be connected wrongly, otherwise the device or serial port module may be damaged)
The above are the pins that must be connected for normal communication.
●VCC: power output (depending on whether the external device needs power supply to determine whether to connect or not, the maximum current must not exceed 500mA)
●TX-D: TX through the reverse diode, that is, the TX signal with open drain output, which can only output low level and needs to be pulled high externally. When the STC microcontroller downloads the program, use TX-D instead of TX and connect to the P30 pin of the MCU.
prompt
● This module can support the signal pin and power pin to switch to 5V/3.3V/2.5V/1.8V at the same time (using VCC for external power supply, the signal pin and VCC level are the same), and it can also support the use of different power supply for the signal and power supply. Ping (use 5V or 3.3V/2.5V/1.8V row for external power supply).
● In the factory test, the default level is 3.3V or 1.8V. TX/RX are directly connected, just take it off when in use.
Precautions
● This is a 5V/3.3V/2.5V/1.8V TTL level serial port, please do not connect RS-232 level equipment (+-5V to +-15V)
● The load of this module must not exceed 150mA, otherwise there is a risk of overload damage to the module or computer USB (communication only requires three GND/TX/RX wires).
About FT232RL
The FT232R is the latest device to be added to FTDI?s range of USB UART interface Integrated Circuit Devices. The FT232R is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-ID? security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available. USB to serial designs using the FT232R have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device.
The FT232R adds two new functions compared with its predecessors, effectively making it a "3-in-1" chip for some application areas. The internally generated clock (6MHz, 12MHz, 24MHz, and 48MHz) can be brought out of the device and used to drive a microcontroller or external logic. A unique number (the FTDIChip-ID?) is burnt into the device during manufacture and is readable over USB, thus forming the basis of a security dongle which can be used to protect customer application software from being copied.
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip - No USB-specific firmware programming required.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
Fully assisted hardware or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).
In-built support for event characters and line break condition.
New USB FTDIChip-ID? feature.
New configurable CBUS I/O pins.
Auto transmit buffer control for RS485 applications.
Transmit and receive LED drive signals.
New 48MHz, 24MHz,12MHz, and 6MHz clock output signal Options for driving external MCU or FPGA.
FIFO receive and transmit buffers for high data throughput.
256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
Adjustable receive buffer timeout.
Synchronous and asynchronous bit bang mode interface options with RD# and WR# strobes.
New CBUS bit bang mode option.
Integrated 1024 bit internal EEPROM for I/O configuration and storing USB VID, PID, serial number and product description strings.
Device supplied preprogrammed with unique USB serial number.
Support for USB suspend / resume.
Support for bus powered, self powered, and high-power bus powered USB configurations.
Integrated 3.3V level converter for USB I/O .
Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.
True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.
High I/O pin output drive option.
Integrated USB resistors.
Integrated power-on-reset circuit.
Fully integrated clock - no external crystal, oscillator, or resonator required.
Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.
UART signal inversion option.
USB bulk transfer mode.
3.3V to 5.25V Single Supply Operation.
Low operating and USB suspend current.
Low USB bandwidth consumption.
UHCI / OHCI / EHCI host controller compatible.
USB 2.0 Full Speed compatible.
-40°C to 85°C extended operating temperature range.
Drivers are available which allow FTDI devices to work with the following operating systems:
Windows 8.1
Windows 8.1 x64
Windows 8
Windows 8 x64
Windows Server2012
Windows Server 2008 R2
Windows 7
Windows 7 x64
Windows Server 2008
Windows Server 2008 x64
Windows Vista
Windows Vista x64
Windows Server 2003
Windows Server 2003 x64
Windows XP
Windows XP x64
Windows ME
Windows 98
Linux
Mac OS X
Mac OS 9
Mac OS 8
Windows CE.NET (Version 4.2 and greater)
Android
Windows RT
Support for WinCE7.0
Initial functional testing conducted by FTDI has shown that the FTDI drivers function as expected on Windows CE 7.0
Support for older versions of Windows Desktop
NOTE: Microsoft have ended support for certifying XP and VISTA through their WHCK test program. As such current builds will still work on XP and VISTA but are not Microsoft certified.
Differences in Driver API
For most of these operating systems two types of driver are available: Virtual COM Port (VCP) drivers and direct (D2XX) drivers. The VCP driver emulates a standard PC serial port such that the USB device may be communicated with as a standard RS232 device. The D2XX driver allows direct access to a USB device via a DLL interface.
To locate the drivers you want to install for a device, select which of the driver types you wish to use (VCP or D2XX) and then locate the appropriate operating systems. With the exception of Windows 98 and Windows ME, all devices are supported in each driver package.
If a VCP driver is required for Android please refer to the following application note: TN 132 Adding FTDI Devices VCP Driver Support to Android
